Lucca X58: Power Switch Replacement

These instructions demonstrate how to replace the power switch on the Lucca X58 espresso machine.

Tools Needed:
- Philips head screwdriver
- Slip-joint pliers
- Masking tape

NOTE: The machine must be powered off and unplugged before beginning.

1. Remove the panels from the machine.

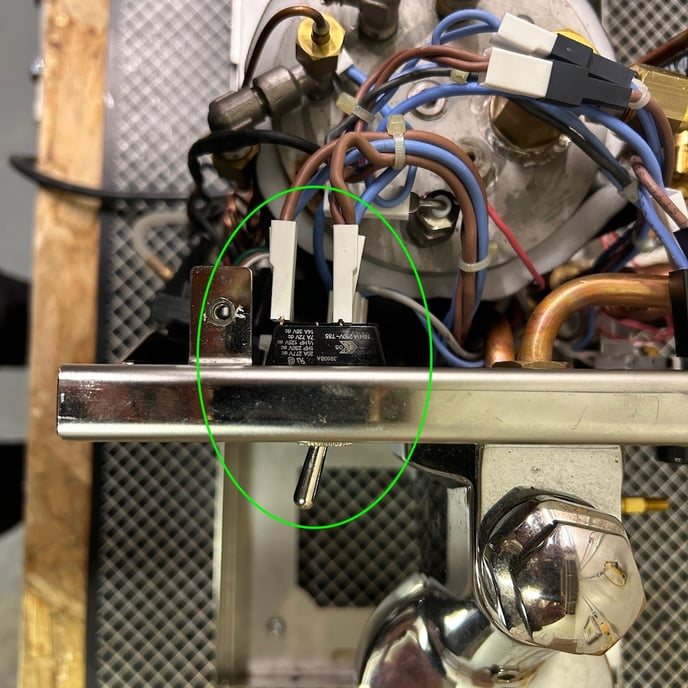

2. Identify the machine's power switch.
Lucca_X58_power_switch_01

3. Remove the brown power wires from the back of the power switch.
Lucca_X58_power_switch_02

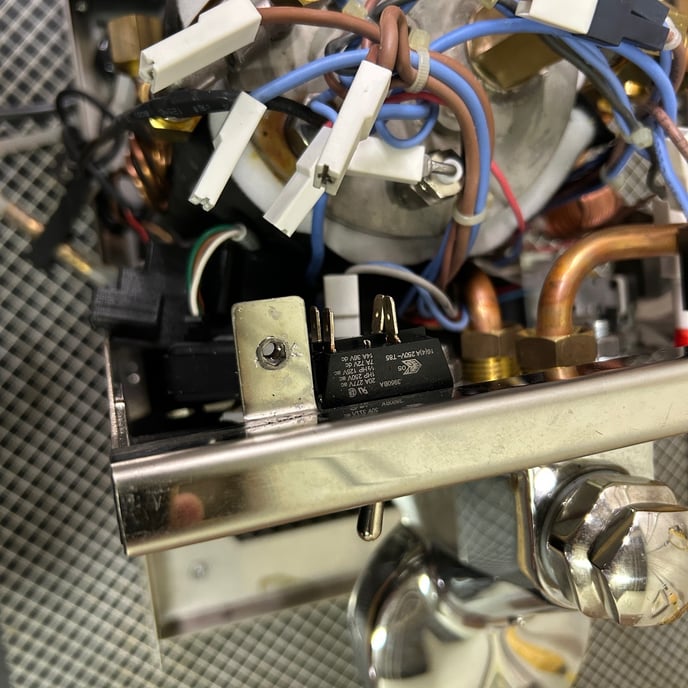

4. Remove the blue power wires from the back of the power switch.
Lucca_X58_power_switch_03

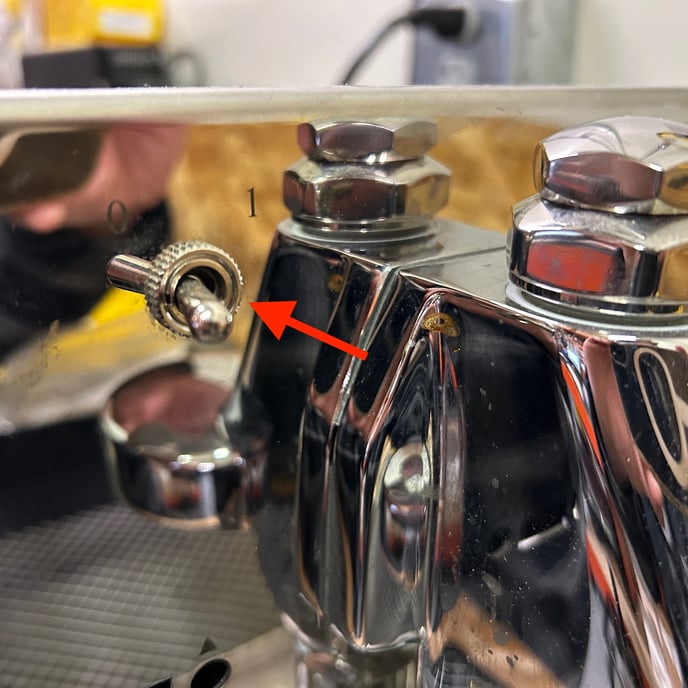

5. On the front of the machine, identify the knurled retaining ring that holds the power switch in place.
Lucca_X58_power_switch_04

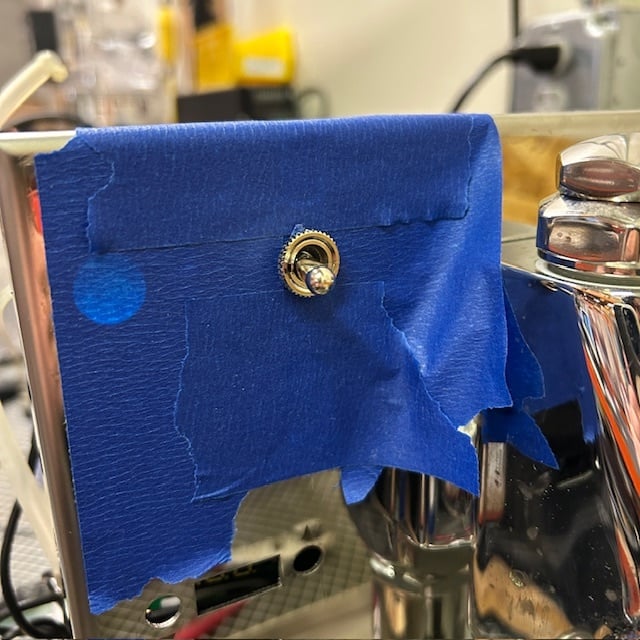

6. Use the masking tape to mask off the front panel of the machine around the retaining ring. This will protect the stainless steel finish from accidental damage.
Lucca_X58_power_switch_05

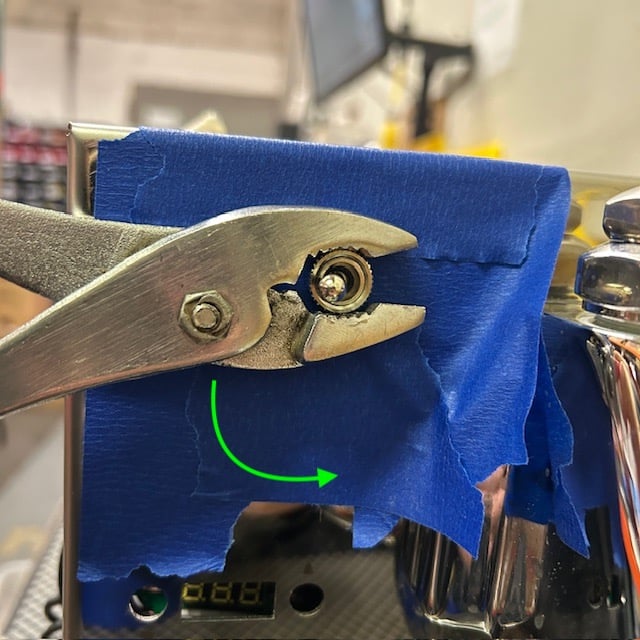

7. Use the slip-joint pliers to gently grip the retaining ring. Turn the retaining ring counter-clockwise, just enough to loosen it.
Lucca_X58_power_switch_06

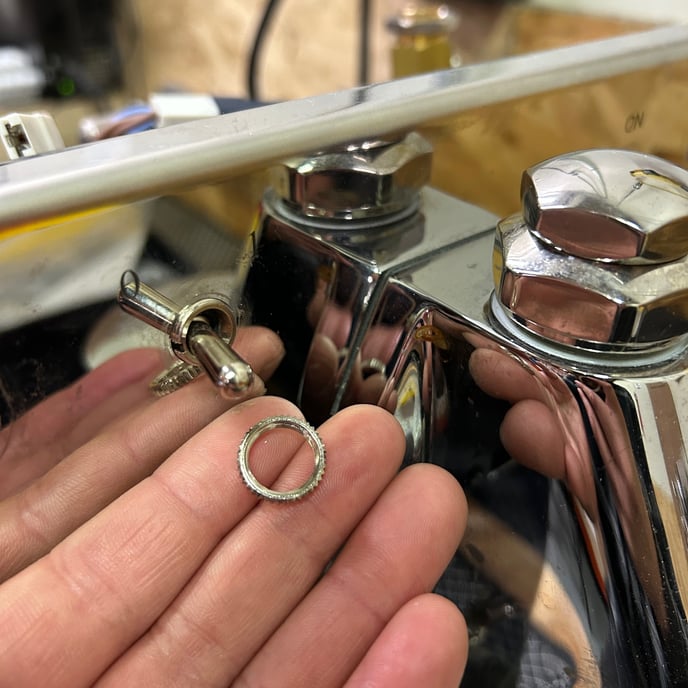

8. Finish unscrewing the retaining ring with your fingers.
Lucca_X58_power_switch_07

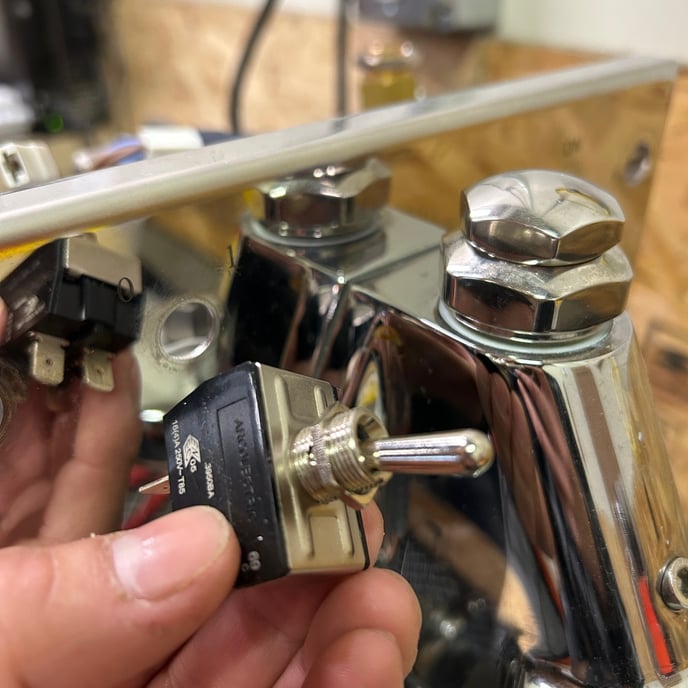

9. You can now slide the old power switch out through the back of the front panel.
Lucca_X58_power_switch_08

10. Insert the new power switch and follow these instructions in reverse to finish installing it.

NOTE: Consult the photos in Step 2 and Step 3 to make sure that the switch and the wires are installed in the correct orientation.
