Profitec Pro 500: Vacuum Breaker Inspection and Service

Internal condensation, weak or absent steam/hot water, intermittent pressure-relief sounds that continue long after the machine has reached full temperature — these are all signs that your Pro 500's vacuum breaker may need attention.

Before doing this we recommend allowing the machine to fully cool off and unplugging the machine.

Tools required:

• 3mm Allen key or hex driver
• 17mm wrench or adjustable wrench
• Highly recommended: 17mm deep socket and socket wrench with extension
• A vacuum breaker rebuild kit, available here

1. Use the 3mm Allen key or hex driver to remove the top panel from the machine.

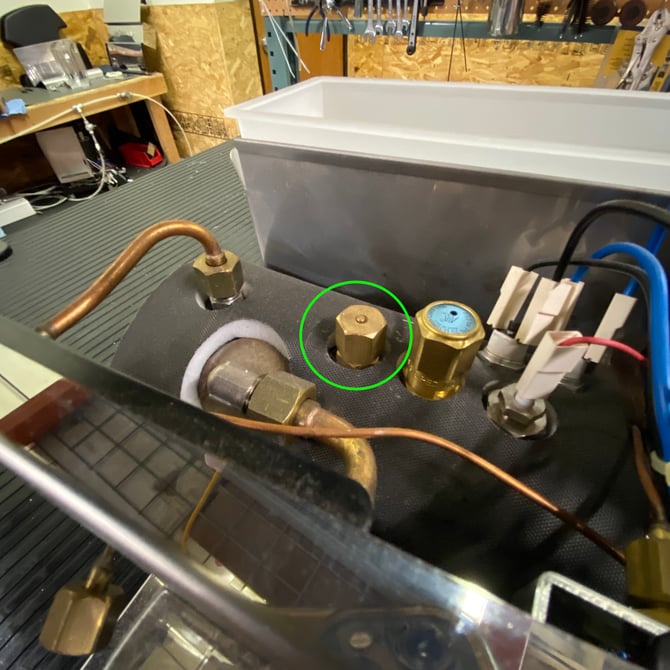

2. Identify the vacuum breaker.

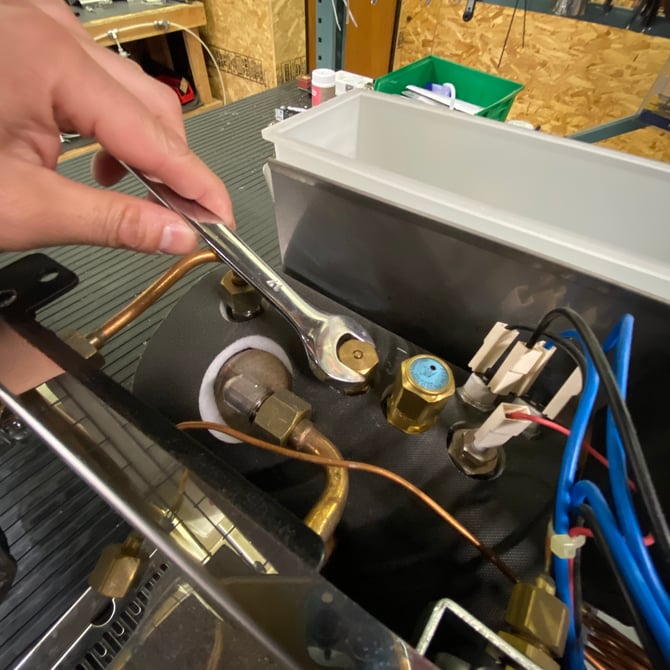

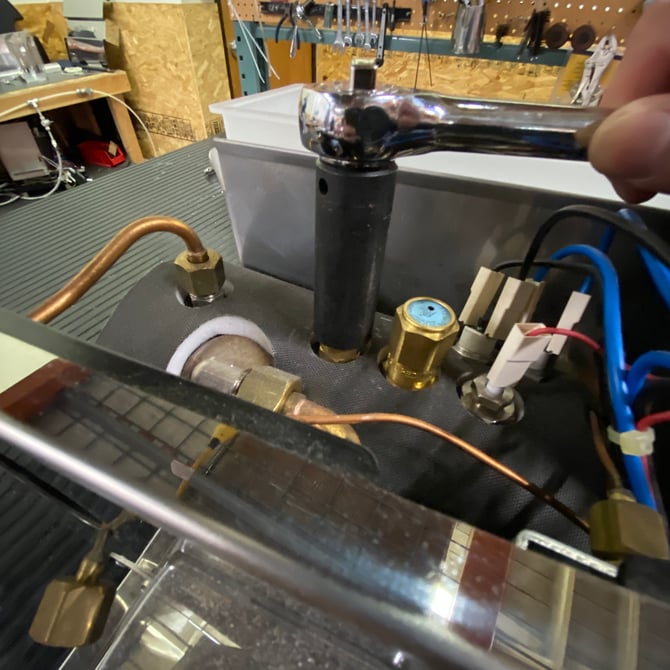

3. Use the 17mm wrench or the adjustable wrench to unscrew the top cap from the vacuum breaker. You may want to remove the side panels from your machine to get a better angle OR use a socket wrench with extension.


(NOTE: You may need to hold the bottom fitting with a second wrench to keep it from turning with the cap. In that case, you'll need to remove the side panels from the machine as well.)

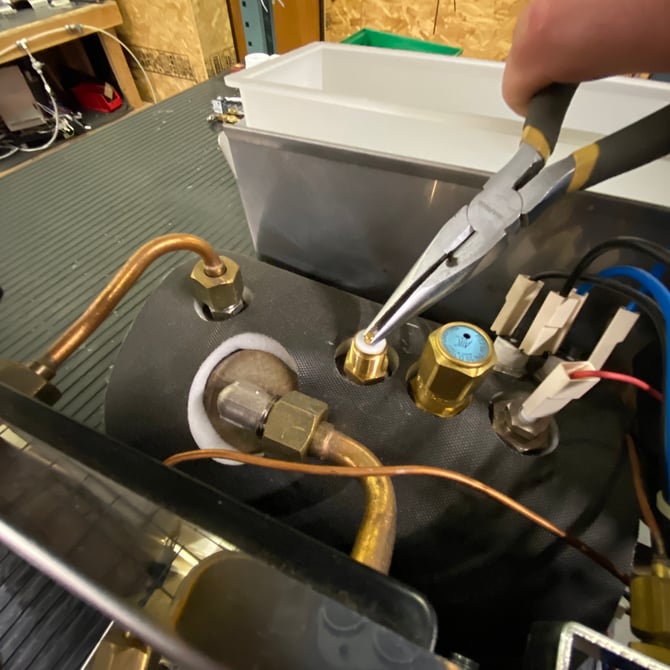

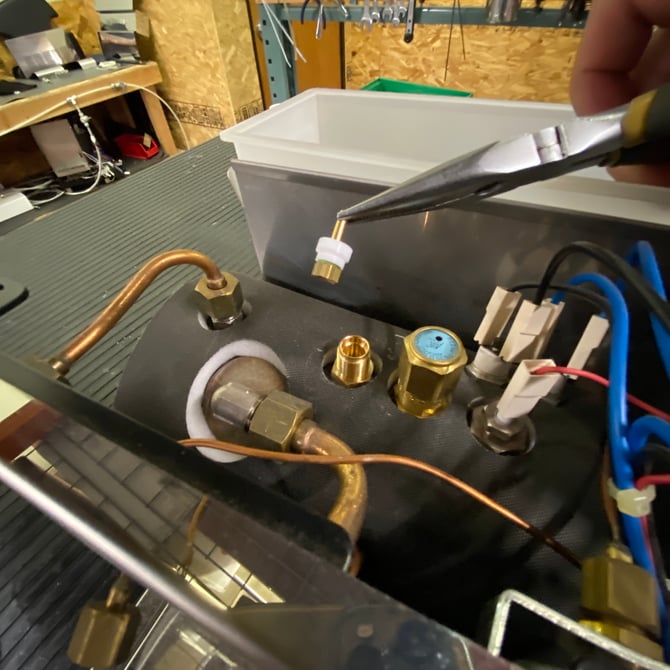

4. Gently grip the vacuum breaker valve stem with the needle-nose pliers and pull the internal components free. Take note of the internal components' assembly orientation.

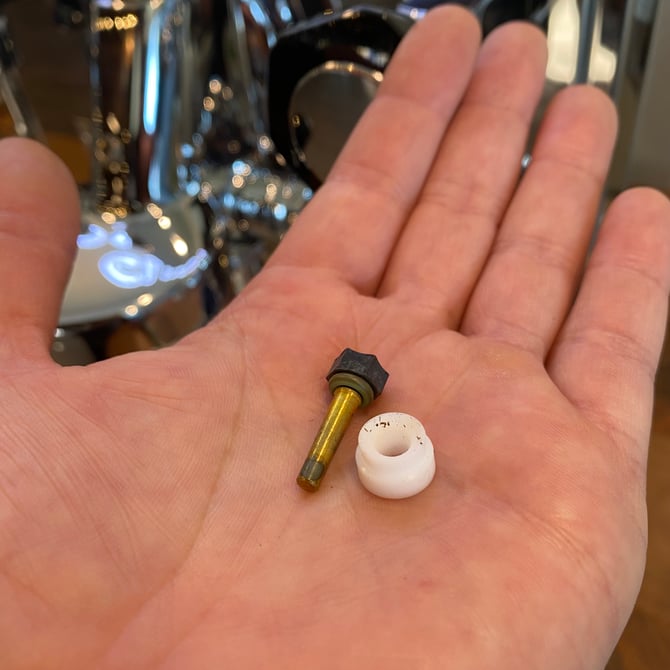

5. Inspect the internal components for scale build-up, debris or signs of wear. It may be possible to resolve the issue by simply cleaning these components thoroughly and reassembling OR you may need to replace them with new parts before reassembly.

(NOTE: The vacuum breaker O-ring is manufactured in various colors — this do not affect the valve's functionality.)

6. Don't forget to inspect and clean inside the cap and lower fitting!

7. Take note of the proper orientation of the internal components, then reassemble the valve by following these steps in reverse order.
