Ascaso Steel DUO: Removing the Top Panel

You may need to remove the machine's top panel to perform basic maintenance or light repairs.

Tools needed:
- 2.5mm Allen wrench or hex driver

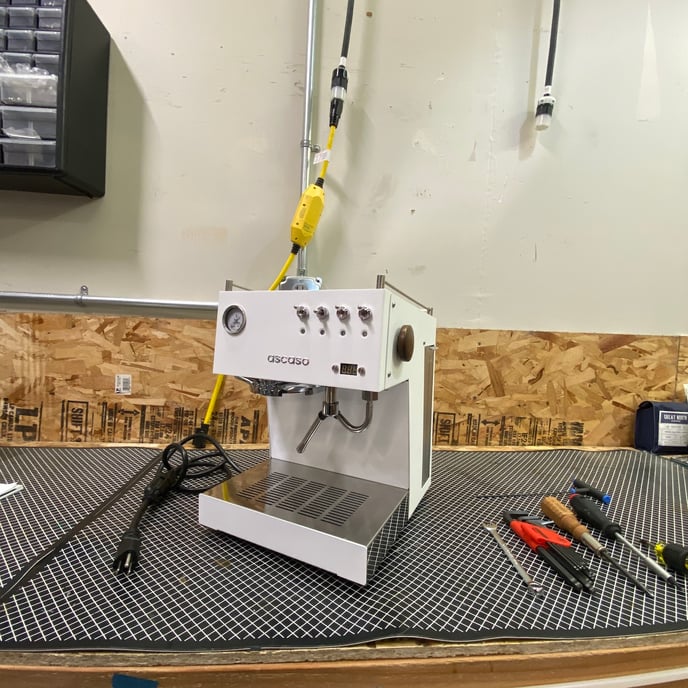

1. Make sure that the water reservoir is empty or remove it from the machine.
Ascaso_Steel_Uno_panel_removal_00

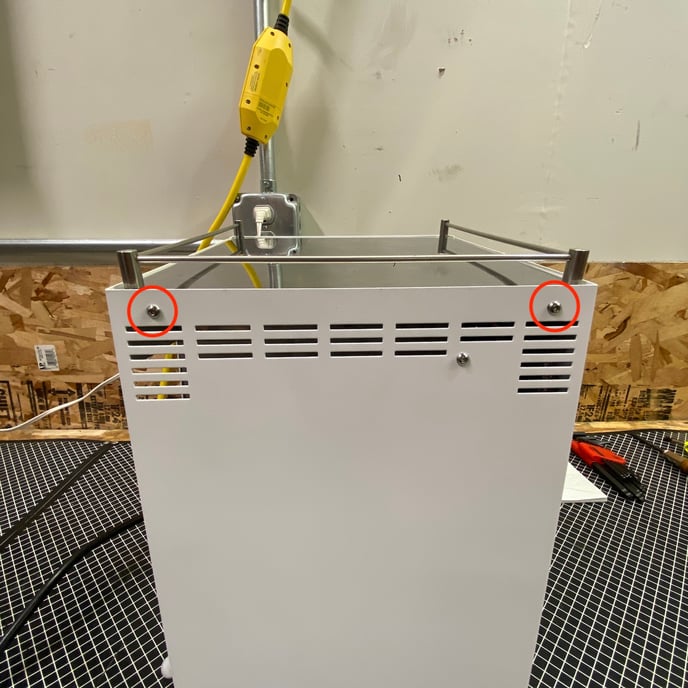

2. Turn the machine around and remove the two Allen head screws shown here with the 2.5mm Allen wrench or hex driver.
Ascaso_Steel_Uno_panel_removal_02

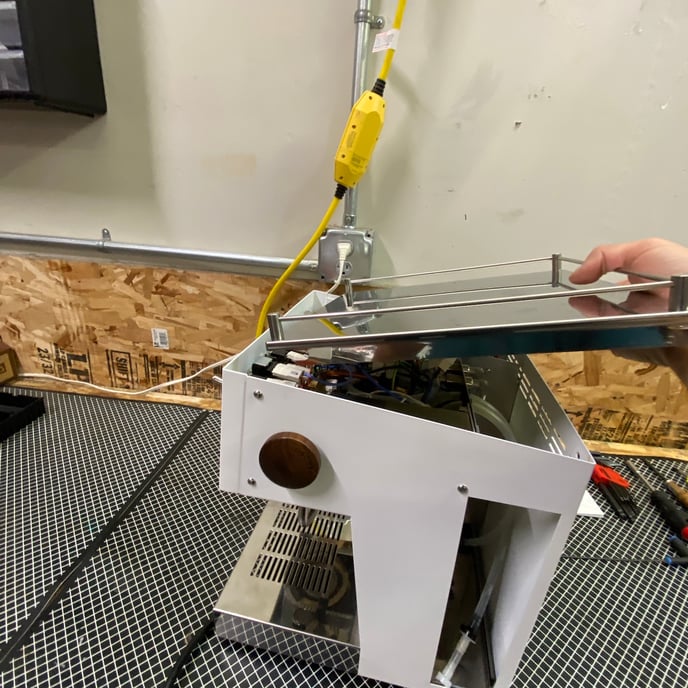

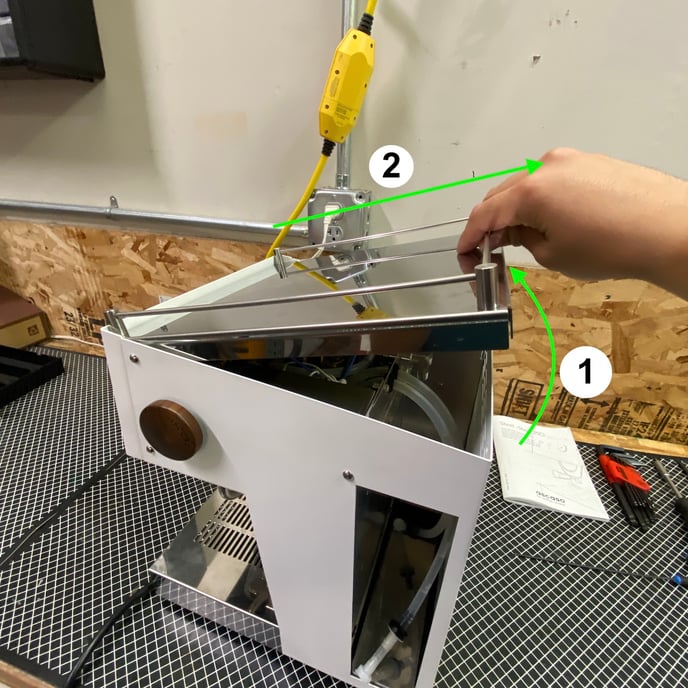

3. Lift up firmly on the rear side of the top panel, it should pivot at the front like a hinge. Then gently pull the whole top panel straight back as shown.
Ascaso_Steel_Uno_panel_removal_03
Ascaso_Steel_Uno_panel_removal_04

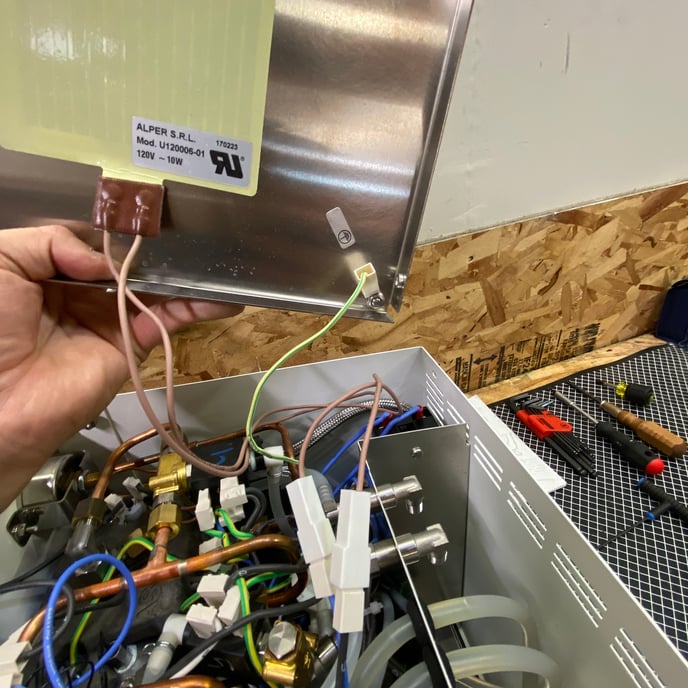

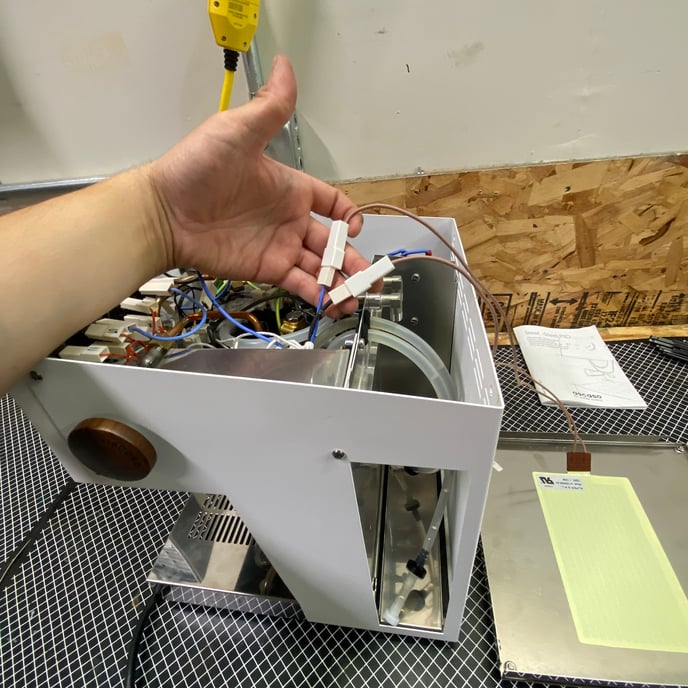

4. Identify the ground wire (green/yellow) and power wires (brown) for the top tray cup warming pad. Disconnect the wires and set the cup top panel aside.
Ascaso_Steel_Uno_panel_removal_05
Ascaso_Steel_Uno_panel_removal_06

5. You can now perform any necessary inspection or maintenance through the top of the machine.
