Panel Removal

LUCCA Tempo: Panel Removal

Here's how to gain access to the internal components of your machine for inspection, troubleshooting or maintenance.


Tools required:

  • #1 Philips head screwdriver
  • #2 Philips head screwdriver

    IMG_20250716_121225471



Before continuing ensure the machine is fully cooled and disconnected from the power source.



Removing the Top Panel

  1. Remove the three screws holding the top panel with the smaller #1 Philips head screwdriver.
    IMG_20250716_110311974

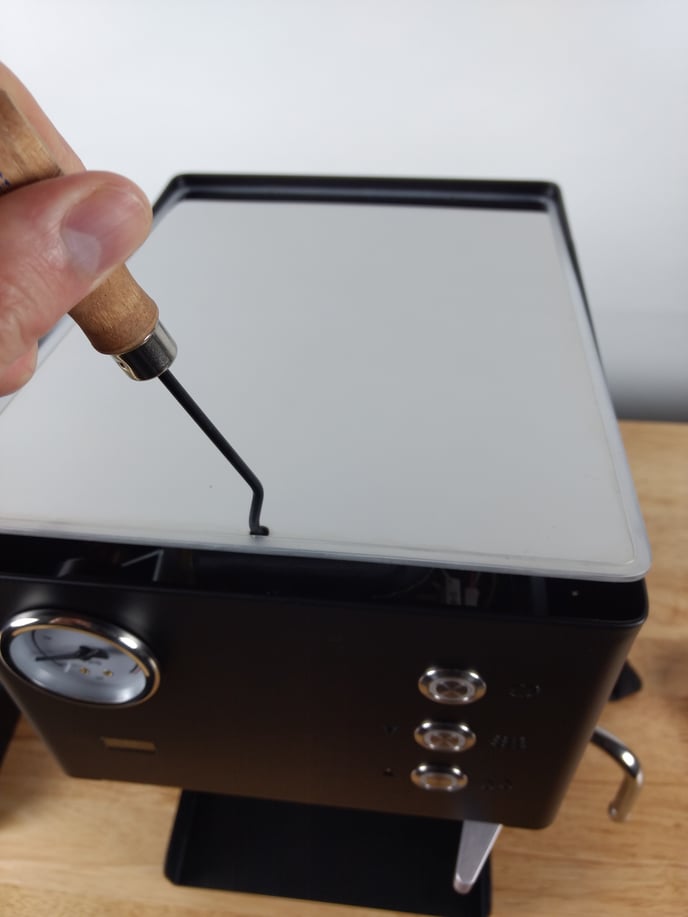

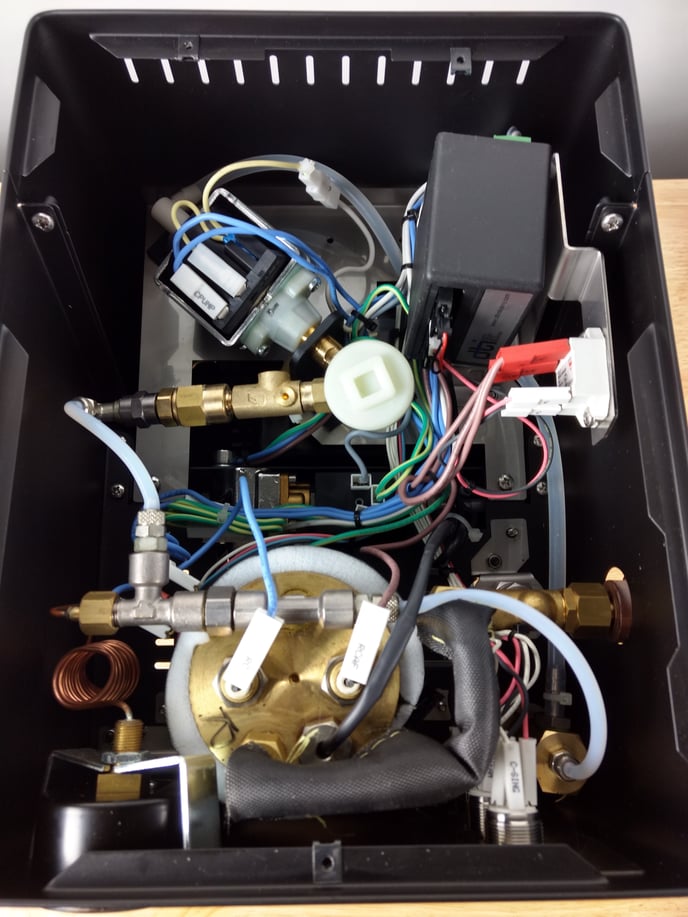

  2. Lift the top panel up and out. A pick or curved implement may help lift the panel. The internal components are now visible.
    IMG_20250716_110427935
    IMG_20250716_110751672_HDR

Removing the Lower Front Panel

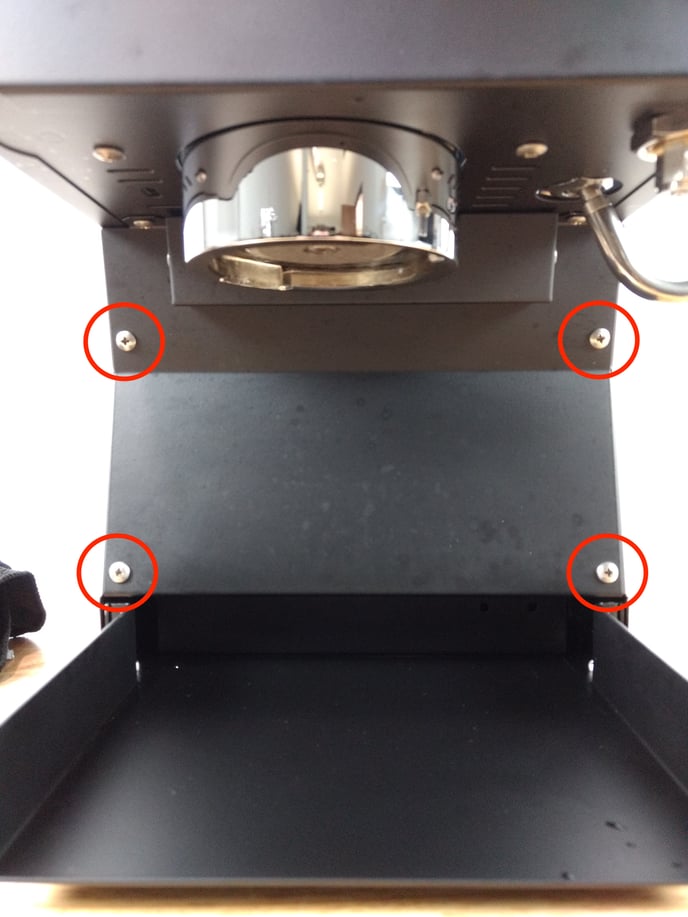

  1. Removing the front panel may be necessary to service the three-way solenoid. There are eight screws holding this panel in place. With the machine upright, remove the four on the front panel using the larger #2 Philips head screwdriver.
    tempo_lower_front_annotated

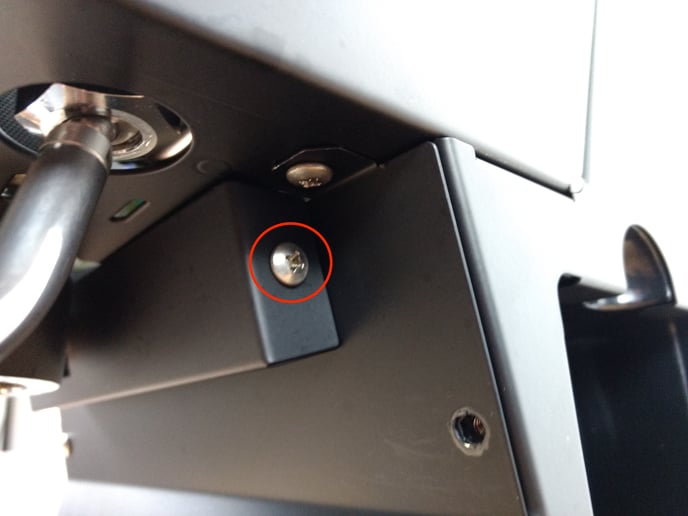

  2. The grouphead cowl must be removed before continuing. There are two screws, one on either side.
    tempo_cowl_01
    tempo_cowl_02

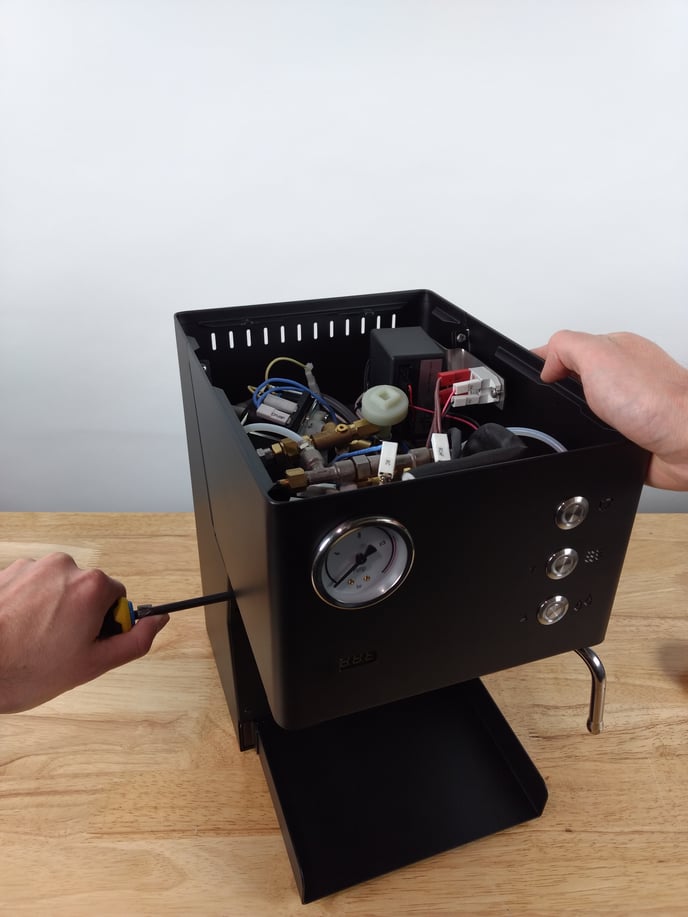

    It may be necessary to brace the machine with one hand while turning the screwdriver with the other to prevent stripping the screws.
    tempo_cowl_03

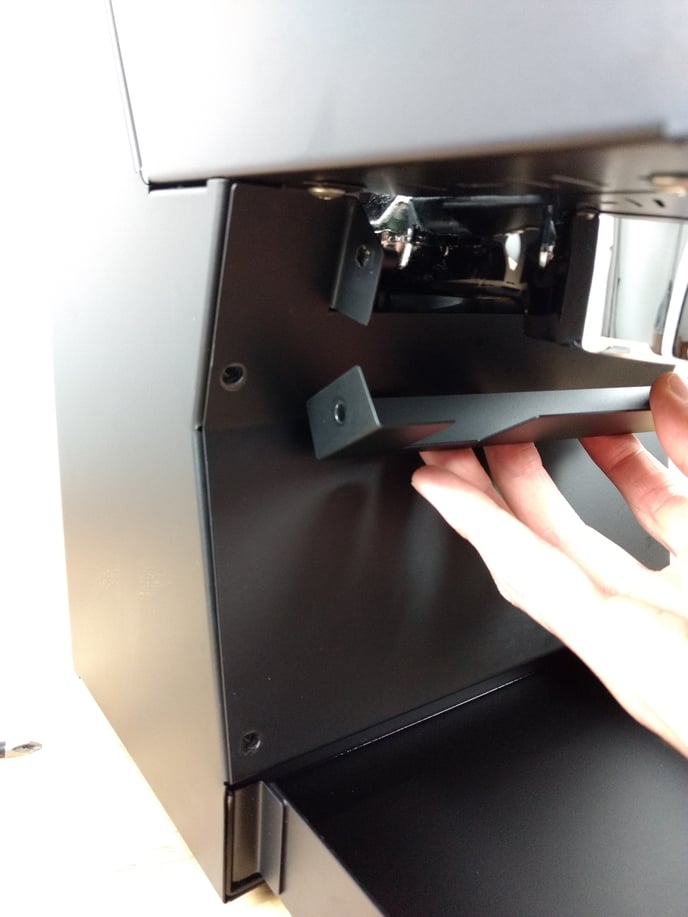

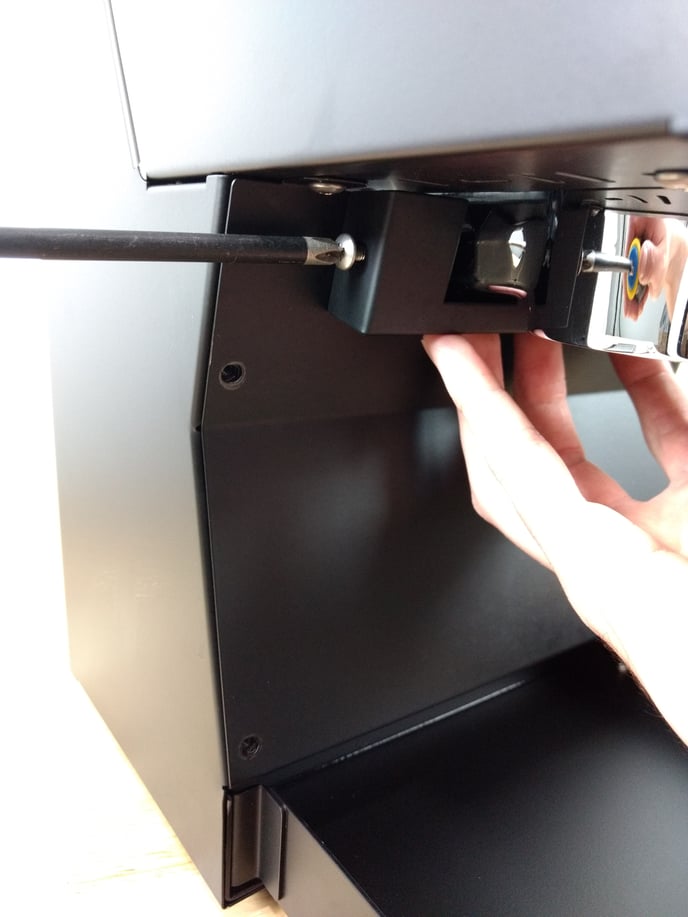

    Support the cowl while removing it from the machine.
    tempo_cowl_04
    tempo_cowl_05

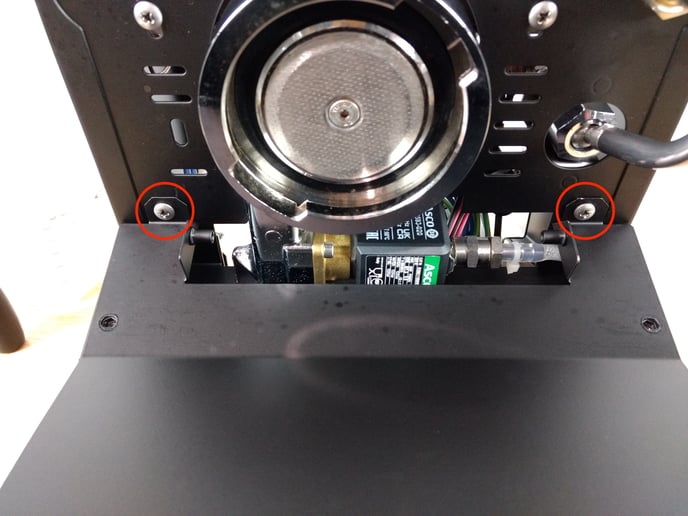

  3. Finally, there are two more screws underneath the overhang of the grouphead. It may be easier to remove these with the machine on its back.
    tempo_front_02

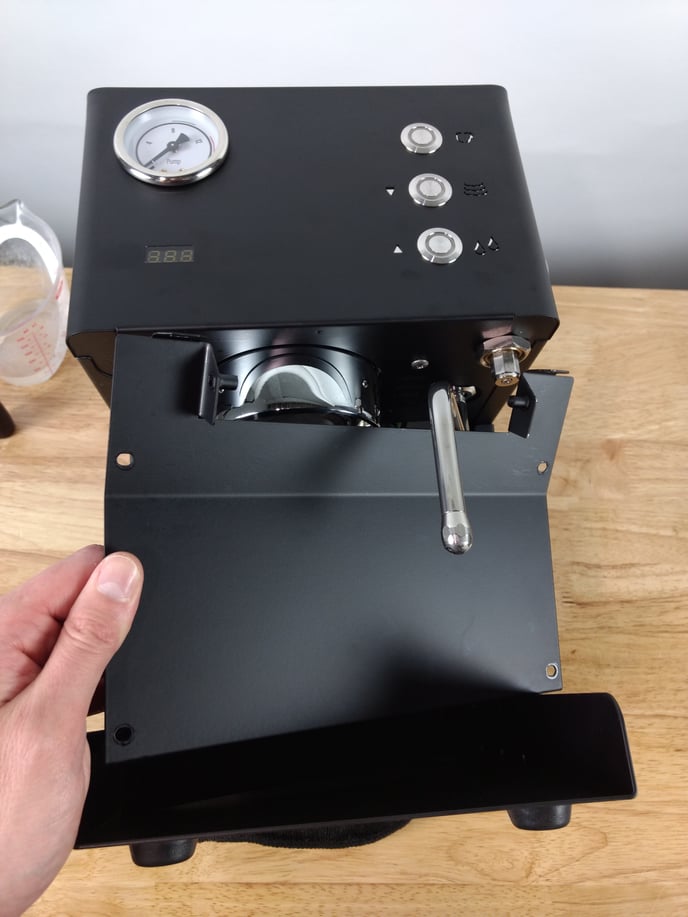

  4. Wiggle the front panel until it is able to slide past the grouphead and steam wand. Rotating the steam wand inwards may create a bit more clearance. Exercise care not to scratch or damage any of the chrome plating.
    tempo_front_lift

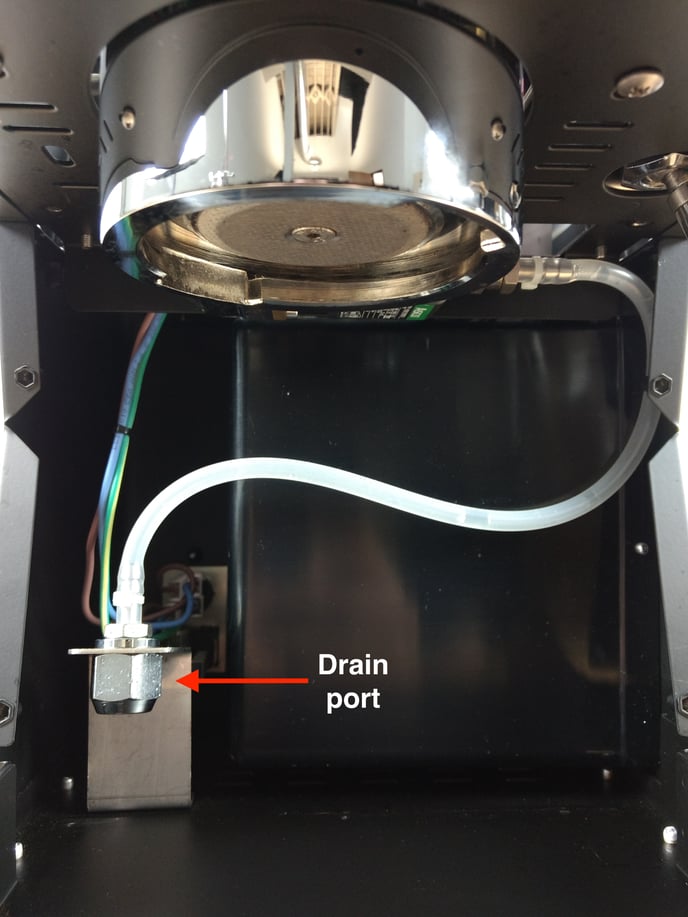

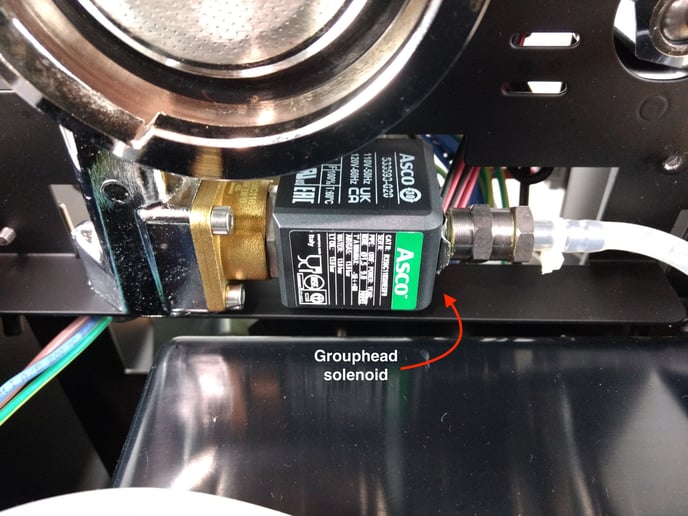

  5. The grouphead solenoid and drip tray drain port are now accessible
    tempo_drain_port
    tempo_solenoid
